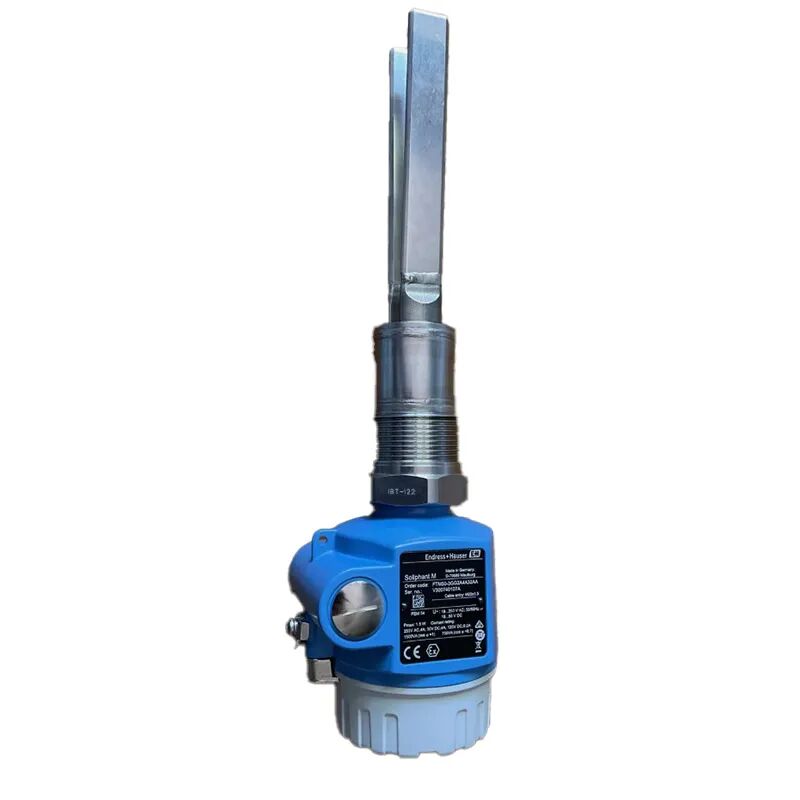

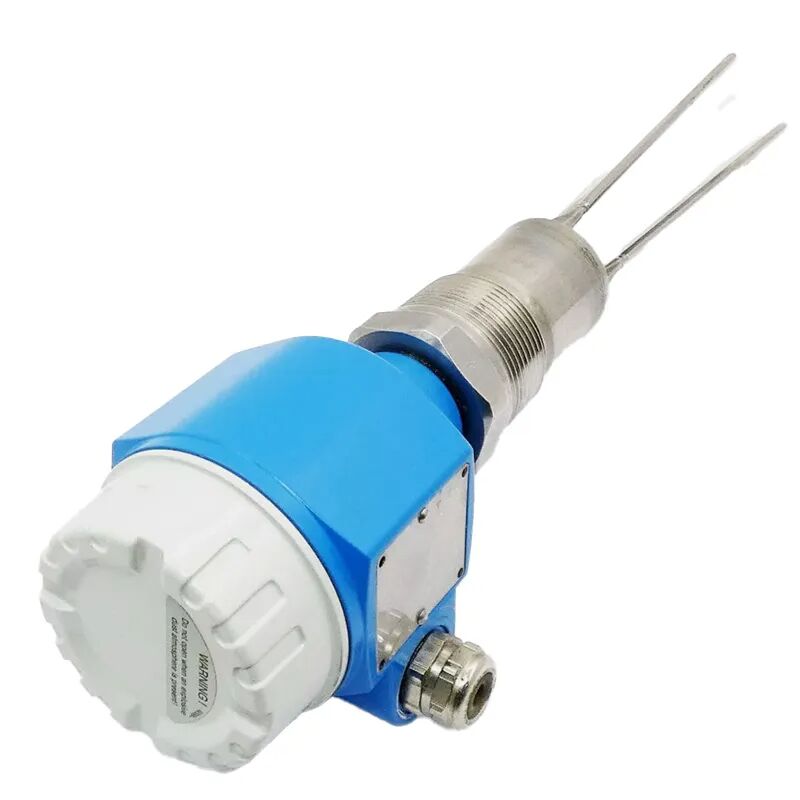

Name: OEM New Original Endress Hauser Soliphant FTM50 FTM51 FTM52 Universal Vibronic Point Level Switch Stainless Steel Housing IP66/IP68
Brand: Shaanxi Huibo Electromechanical Technology Co., Ltd
SKU: FTM51
Availability: InStock

Home > Products > 3051 Transmitter >

OEM New Original Endress Hauser Soliphant FTM50 FTM51 FTM52 Universal Vibronic Point Level Switch Stainless Steel Housing IP66/IP68

Endress Hauser Soliphant level switch

Stainless steel vibronic switch

IP66 IP68 level transmitter

Brand Name:

E+H

Model Number:

FTM51

Request A Quote

Product Details

Highlight:

Endress Hauser Soliphant level switch

Stainless steel vibronic switch

IP66 IP68 level transmitter

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

carton

Delivery Time

5-8 days

Payment Terms

T/T

ln@sxhbjd.cn

Contact Now

Product Description

OEM New Original Endress Hauser Soliphant FTM50 FTM51 FTM52 Universal Vibronic Point Level Switch Stainless Steel Housing IP66/IP68

Description:

Brand	Endress Ha user
Model code	FTM50,FTM51,FTM52
Measuring principle	Vibronic point level switch for bulk solids
Medium suitability	Designed for fine-grained to coarse-grained bulk solids, also suitable for dusty environments
Process temperature range	-40℃ to+150℃ (extended versions available)
Process pressure range	Up to 25 bar (depending on version)
Housing material	Aluminum or stainless steel, with IP66/IP68 and NEMA 4X/6P protection
Process connection options	Thread, flange, or hygienic connections
Probe length versions	Short rod, rod extension up to 6 m, rope version up to 12 m
Approval s	Available with ATEX,IECEx,FM,CSA for hazardous areas (dust and gas)
Output signals	Relay,transistor, or 2-wire NAMUR for easy integration into control systems

Field of application

Soliphant FTM50 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas.
Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.

Benefits

  SIL2 in accordance with IEC 61508
No mechanically moved parts, free of maintenance
Measurement not affected by build-up or external vibration
Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system
Build-up and abrasion display selectable, density setting and switching delay selectable
Choice of coated or polished sensor
Build-up and corrosion detection

Point level switch for fine grained solids and powder.

Process connections: Threads, flanges and hygienic connection (Tri-Clamp)
Temperature: -50 to +280°C (-60 to +540°F)
Pressure: -1 to +25bar (-14.5 to +360psi)
Sensor length: 145mm, 200mm,300mm
Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)
International explosion protection certificates

Why choose us?

Fast Delivery

Thank you for your support, we have the largest logistics and warehousing center in northwest China, all spot transactions, to ensure that the delivery is completed within 1 week after the contract signing.

Official Purchase Channel

With 10 years of dedicated sales and service experience and official procurement channels, we believe that we can make you satisfied with the most favorable price, the best quality products and the most efficient service.

After-sales and Warranty

The company has a professional team of after-sales and technical engineers to help you solve problems at any time. We promise to repair and even replace the product at any time during the warranty period.
