Place of Origin:
Singapore
Certification:
ISO9001
Model Number:
3051CG

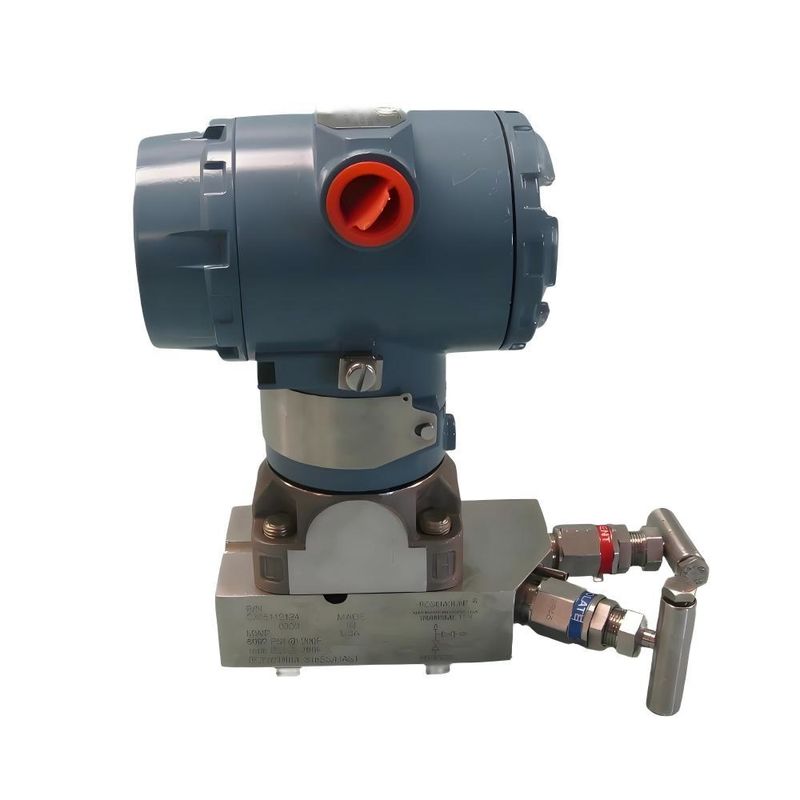

The Rosemount 3051CG Chemical Seal Pressure Transmitter is a high-performance, gauge pressure device engineered for critical applications requiring isolation from harsh, viscous, or high-temperature process media. Built on the Coplanar™ platform, it seamlessly integrates with Emerson’s 1199 diaphragm seal systems to ensure measurement reliability and process compatibility. With industry-leading accuracy, long-term stability, and advanced diagnostics, it supports analog and digital communication protocols for flexible integration in demanding industrial environments.
Specifications:
Feature / Model | 3051CG (Gage + Chemical Seal) | 3051CD (Differential) | 3051CA (Absolute) | 3051S (Smart Series) |
---|---|---|---|---|
Measurement Type | Gage pressure | Differential pressure | Absolute pressure | All types (D/G/A) |
Seal Compatibility | Yes (1199 diaphragm seal) | Yes | Yes | Yes |
Coplanar™ Platform | ✔️ | ✔️ | ✔️ | ✔️ |
Reference Accuracy | ±0.04% of span | ±0.04% of span | ±0.04% of span | ±0.025% of span |
Stability (10-year) | ±0.2% of URL | ±0.2% of URL | ±0.2% of URL | ±0.125% of URL |
Output Protocols | HART, FF, PA, WirelessHART | Same | Same | Same + Advanced Options |
Diagnostics | Loop Integrity, Plugged Line | Same | Same | Advanced + Power Advisory |
Bluetooth® Option | Optional | Optional | Optional | ✔️ |
Best For | Corrosive/viscous media isolation | Flow/level measurement | Vacuum/high-purity | High-accuracy, critical apps |
Tip: Choose 3051CG when you need media isolation with gauge pressure measurement. Opt for 3051S if your application demands ultra-high accuracy, 200:1 turndown, or SIL 3 safety.
Applications:
Packing:
It measures gauge pressure, which is pressure relative to atmospheric pressure, using Emerson’s Coplanar™ platform for flexible integration.
It supports a wide span—from 25 inH₂O to 2000 psi (1.72 mbar to 137.89 bar), depending on the selected sensor range.
It offers ±0.04% of span accuracy, with a 150:1 turndown ratio, ensuring precise performance across a wide range of applications.
The 3051CG uses a Coplanar flange, allowing direct mounting to manifolds or remote diaphragm seals.
Yes, it is SIL 2/3 certified per IEC 61508, making it suitable for Safety Instrumented Systems (SIS).
It features:
Yes. Models with a graphical LCD support local configuration via external buttons—even in hazardous areas.
Models of 3051CG Transmitters:
Model Code | Range Code | Process Conn. | Options |
---|---|---|---|
3051CG1A02A1AB1H2L4M5 | 1 | B1 | L4M5 |
3051CG2A02A1AB1H2L4M5 | 2 | B1 | L4M5 |
3051CG3A02A1AB1H2L4M5 | 3 | B1 | L4M5 |
3051CG4A02A1AB1H2L4M5 | 4 | B1 | L4M5 |
3051CG5A02A1AB1H2L4M5 | 5 | B1 | L4M5 |
3051CG1A02A1AB3H2L4M5 | 1 | B3 | L4M5 |
3051CG2A02A1AB3H2L4M5 | 2 | B3 | L4M5 |
3051CG3A02A1AB3H2L4M5 | 3 | B3 | L4M5 |
3051CG4A02A1AB3H2L4M5 | 4 | B3 | L4M5 |
3051CG5A02A1AB3H2L4M5 | 5 | B3 | L4M5 |
3051CG1A02A1AB1H2L4M5K5 | 1 | B1 | L4M5K5 |
3051CG2A02A1AB1H2L4M5K5 | 2 | B1 | L4M5K5 |
3051CG3A02A1AB1H2L4M5K5 | 3 | B1 | L4M5K5 |
3051CG4A02A1AB1H2L4M5K5 | 4 | B1 | L4M5K5 |
3051CG5A02A1AB1H2L4M5K5 | 5 | B1 | L4M5K5 |
3051CG1A02A1AB1H2L4M5E5 | 1 | B1 | L4M5E5 |
3051CG2A02A1AB1H2L4M5E5 | 2 | B1 | L4M5E5 |
3051CG3A02A1AB1H2L4M5E5 | 3 | B1 | L4M5E5 |
3051CG4A02A1AB1H2L4M5E5 | 4 | B1 | L4M5E5 |
3051CG5A02A1AB1H2L4M5E5 | 5 | B1 | L4M5E5 |
3051CG1A02A1AB1H2L4M5I5 | 1 | B1 | L4M5I5 |
3051CG2A02A1AB1H2L4M5I5 | 2 | B1 | L4M5I5 |
3051CG3A02A1AB1H2L4M5I5 | 3 | B1 | L4M5I5 |
3051CG4A02A1AB1H2L4M5I5 | 4 | B1 | L4M5I5 |
3051CG5A02A1AB1H2L4M5I5 | 5 | B1 | L4M5I5 |
3051CG1A02A1AB3H2L4M5K5 | 1 | B3 | L4M5K5 |
3051CG2A02A1AB3H2L4M5K5 | 2 | B3 | L4M5K5 |
3051CG3A02A1AB3H2L4M5K5 | 3 | B3 | L4M5K5 |
3051CG4A02A1AB3H2L4M5K5 | 4 | B3 | L4M5K5 |
3051CG5A02A1AB3H2L4M5K5 | 5 | B3 | L4M5K5 |
3051CG1A02A1AB3H2L4M5E5 | 1 | B3 | L4M5E5 |
3051CG2A02A1AB3H2L4M5E5 | 2 | B3 | L4M5E5 |
3051CG3A02A1AB3H2L4M5E5 | 3 | B3 | L4M5E5 |
3051CG4A02A1AB3H2L4M5E5 | 4 | B3 | L4M5E5 |
3051CG5A02A1AB3H2L4M5E5 | 5 | B3 | L4M5E5 |
3051CG1A02A1AB3H2L4M5I5 | 1 | B3 | L4M5I5 |
3051CG2A02A1AB3H2L4M5I5 | 2 | B3 | L4M5I5 |
3051CG3A02A1AB3H2L4M5I5 | 3 | B3 | L4M5I5 |
3051CG4A02A1AB3H2L4M5I5 | 4 | B3 | L4M5I5 |
3051CG5A02A1AB3H2L4M5I5 | 5 | B3 | L4M5I5 |
3051CG1A22A1AB4M5 | 1 | B4 | M5 |
3051CG2A22A1AB4M5 | 2 | B4 | M5 |
3051CG3A22A1AB4M5 | 3 | B4 | M5 |
3051CG4A22A1AB4M5 | 4 | B4 | M5 |
3051CG5A22A1AB4M5 | 5 | B4 | M5 |
3051CG1A22A1AB4M5DF | 1 | B4 | M5DF |
3051CG2A22A1AB4M5DF | 2 | B4 | M5DF |
3051CG3A22A1AB4M5DF | 3 | B4 | M5DF |
3051CG4A22A1AB4M5DF | 4 | B4 | M5DF |
3051CG5A22A1AB4M5DF | 5 | B4 | M5DF |
3051CG1A22A1AB4M5K5 | 1 | B4 | M5K5 |
3051CG2A22A1AB4M5K5 | 2 | B4 | M5K5 |
3051CG3A22A1AB4M5K5 | 3 | B4 | M5K5 |
3051CG4A22A1AB4M5K5 | 4 | B4 | M5K5 |
3051CG5A22A1AB4M5K5 | 5 | B4 | M5K5 |
3051CG1A22A1AB4M5E5 | 1 | B4 | M5E5 |
