3051S Pressure Transmitter FOUNDATION Fieldbus Protocol for Process Temperature

3051S Pressure Transmitter FOUNDATION Fieldbus Protocol for Process Temperature

Foundation Fieldbus Protocol Pressure Transmitter

3051S Pressure Transmitter

Process Temperature Pressure Transmitter

Place of Origin:

Singapore

Brand Name:

3051S high-precision pressure transmitter

Certification:

IS9001

Model Number:

3051S

Contact Us
Request A Quote
Product Details
Accuracy:
±0.04% Of Span
Communication Protocol:
HART, FOUNDATION Fieldbus, Profibus PA, 1-5 VDC HART Low Power, WirelessHART
Measurement Type:
Pressure
Process Connection:
1/4-18 NPT Male
Ambient Temperature:
-40 To 185°F (-40 To 85°C)
Mounting Type:
Integral Or Remote Mount
Display:
LCD With Backlight
Wetted Materials:
316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400
Protection Rating:
IP67
Measurement Range:
0-10,000 Psi
Output Signal:
4-20 MA With Digital Signal Based On HART Protocol
Power Supply:
10.5-55 VDC
Process Temperature:
-40 To 185°F (-40 To 85°C)
Certifications:
ATEX, FM, CSA, IECEx, INMETRO, NEPSI, EAC, KOSHA, RCM, CRN, CE, PED, SIL
Highlight:

Foundation Fieldbus Protocol Pressure Transmitter

,

3051S Pressure Transmitter

,

Process Temperature Pressure Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
carton
Delivery Time
8 work days
Payment Terms
T/T,L/C
Product Description

3051S Pressure Transmitter

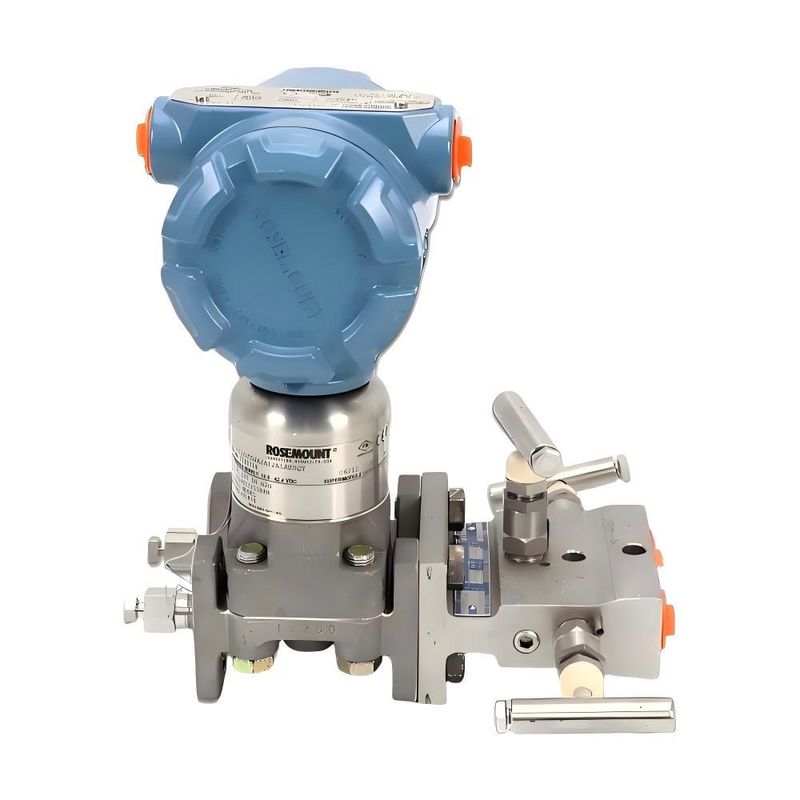

3051S Pressure Transmitter FOUNDATION Fieldbus Protocol for Process Temperature 0


Product Description:


The Rosemount 3051S Pressure Transmitter is a high-performance device engineered for ultra-precise measurement of pressure, flow, and level across demanding industrial applications. Built on the SuperModule™ platform, it features industry-leading accuracy (up to ±0.025% of span), long-term stability, and robust overpressure protection. Its scalable design supports various configurations—including Coplanar™, In-line, and Multivariable models—and advanced digital protocols like HART®, WirelessHART®, and FOUNDATION™ Fieldbus. With SIL 2/3 safety certification and compatibility with Electronic Remote Sensor (ERS™) systems, it offers both versatility and peace of mind for process control, energy flow, and level monitoring tasks.


Specifications:


Feature / Model 3051S (Scalable Performance) 3051CD (Coplanar Differential) 3051HT (Hygienic Transmitter)
Accuracy ±0.025% of span (best-in-class) ±0.04% of span ±0.1% of span
Stability 15-year stability 10-year stability 5-year stability
Measurement Type Differential, Gauge, Absolute, Multivariable Differential Pressure Gauge/Absolute Pressure (Hygienic)
Design Platform SuperModule™ (hermetic, all-welded) Coplanar™ Sanitary design with 3-A and EHEDG compliance
Turn Down Ratio Up to 200:1 Up to 100:1 Up to 20:1
Process Connections Coplanar, In-line, Remote Seal, ERS™ Coplanar Tri-Clamp®, DIN 11851, Varivent®
Certifications SIL 2/3, NACE, CSA, ATEX, IECEx SIL 2/3, CSA, ATEX 3-A, EHEDG, FDA, CIP/SIP compliant
Communication Protocols HART®, WirelessHART®, FOUNDATION™ Fieldbus HART®, WirelessHART®, FOUNDATION™ Fieldbus HART®, FOUNDATION™ Fieldbus
Typical Applications High-accuracy flow, level, and pressure control General-purpose DP flow and level Food, beverage, pharmaceutical pressure monitoring
Cost $$$ (Premium) $$ (Mid-range) $$ (Mid-range, sanitary-specific)


Summary:

  1. Choose 3051S when you need maximum accuracy, diagnostics, and scalability.
  2. Choose 3051CD for reliable differential pressure in standard industrial setups.
  3. Choose 3051HT for sanitary applications requiring hygienic design and compliance.

Key Features:

  1. Ultra-stable performance: Offers up to ±0.025% reference accuracy and 15-year stability.
  2. Wide range down: 200:1 turndown for broad application flexibility.
  3. Multiple outputs: Supports 4–20 mA HART®, WirelessHART®, and FOUNDATION™ Fieldbus.
  4. Robust construction: Available in materials like 316L SST, Alloy C-276, and Tantalum for harsh environments.
  5. Diagnostics: Includes Plugged Impulse Line detection and loop integrity checks.
  6. Safety certified: SIL 2/3 certified for use in safety instrumented systems.

3051S Pressure Transmitter FOUNDATION Fieldbus Protocol for Process Temperature 1


Applications:


3051S Pressure Transmitter FOUNDATION Fieldbus Protocol for Process Temperature 2

Rosemount 3051S Pressure Transmitter – FAQ

1. What types of pressure does the 3051S measure?

It supports differential, gauge, absolute, and multivariable pressure measurements.

2. What is the accuracy of the 3051S?

It offers up to ±0.025% of span, making it one of the most accurate transmitters in its class.

3. What is the long-term stability?

The 3051S provides 15-year stability, reducing recalibration needs and maintenance costs.

4. What communication protocols are supported?

It supports 4–20 mA HART®, WirelessHART®, and FOUNDATION™ Fieldbus.

5. Is it suitable for safety applications?

Yes, it is SIL 2/3 certified per IEC 61508 for use in safety instrumented systems.

6. What mounting options are available?

It comes in Coplanar™, In-line, and Remote Seal configurations, including ERS™ (Electronic Remote Sensor) systems.

7. Can it be used for flow and level measurement?

Absolutely. When paired with primary elements (like orifice plates or Annubars), it enables accurate flow and level measurement.

8. What materials are available for wetted parts?

Options include 316L SST, Alloy C-276, Tantalum, and others for corrosive environments.

9. What is the turn-down ratio?

It supports a 200:1 range down, offering wide application flexibility.

10. Is it compatible with wireless systems?

Yes, the WirelessHART® version enables remote monitoring with high reliability and low installation cost.
