3051S Differential Pressure Indicator Transmitter

3051S Differential Pressure Indicator Transmitter

Indicator Pressure Transmitter

3051s Differential Pressure Indicator Transmitter

Place of Origin:

Singapore

Brand Name:

3051S high-precision pressure transmitter

Certification:

IS9001

Model Number:

3051S

Contact Us
Request A Quote
Product Details
Accuracy:
±0.04% Of Span
Communication Protocol:
HART, FOUNDATION Fieldbus, Profibus PA, 1-5 VDC HART Low Power, WirelessHART
Measurement Type:
Pressure
Process Connection:
1/4-18 NPT Male
Ambient Temperature:
-40 To 185°F (-40 To 85°C)
Mounting Type:
Integral Or Remote Mount
Display:
LCD With Backlight
Wetted Materials:
316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400
Protection Rating:
IP67
Measurement Range:
0-10,000 Psi
Output Signal:
4-20 MA With Digital Signal Based On HART Protocol
Power Supply:
10.5-55 VDC
Process Temperature:
-40 To 185°F (-40 To 85°C)
Certifications:
ATEX, FM, CSA, IECEx, INMETRO, NEPSI, EAC, KOSHA, RCM, CRN, CE, PED, SIL
Highlight:

Indicator Pressure Transmitter

,

3051s Differential Pressure Indicator Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
carton
Delivery Time
8 work days
Payment Terms
T/T,L/C
Product Description

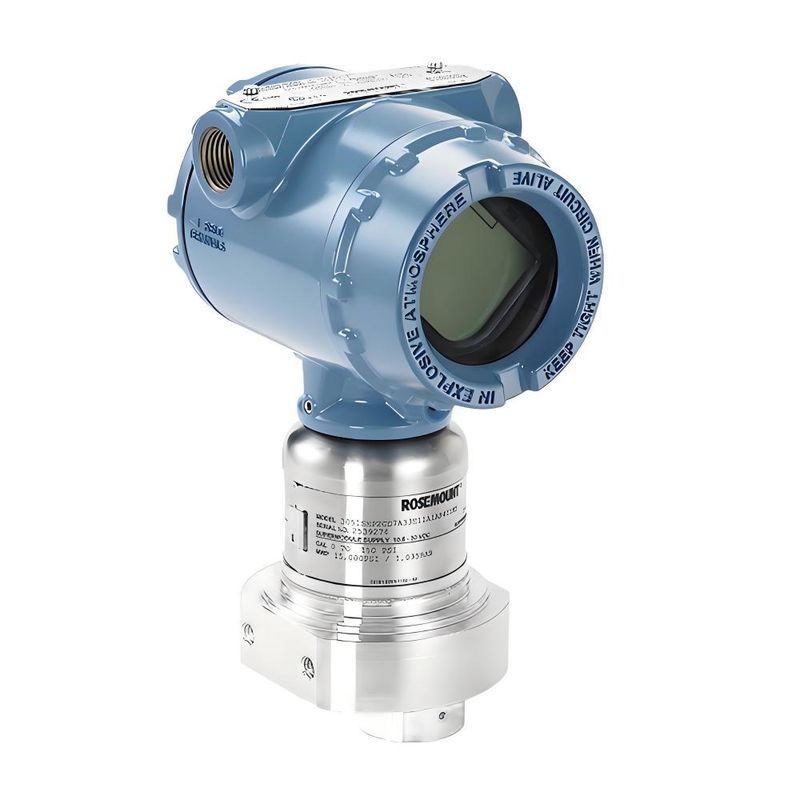

3051S Differential Pressure Indicator Transmitter


3051S  Differential Pressure Indicator Transmitter 0


Product Description:


The Rosemount 3051S Differential Pressure Indicator Transmitter is an industry-leading, ultra-stable pressure measurement solution designed for critical applications requiring exceptional accuracy, long-term reliability, and safety certification. Built on the advanced SuperModule™ platform, it offers a broad range, seamless protocol integration (including HART® and Fieldbus), and robust diagnostics, making it ideal for flow, level, and pressure monitoring in demanding process environments.


Specifications:


Feature / Model 3051S (Scalable Performance) 3051CD (Compact Differential) 3051HT (Hygienic Transmitter)
Core Application High-accuracy, scalable DP measurement Standard DP for general industrial use Sanitary applications (food, pharma)
Accuracy ±0.025% to ±0.04% of reading ±0.075% of span ±0.1% of span
Stability Up to 15 years (SuperModule™) 5-year stability 5-year stability
Turn Down Ratio Up to 200:1 Up to 100:1 Up to 100:1
Output Protocols 4–20 mA HART®, WirelessHART®, Fieldbus 4–20 mA HART® 4–20 mA HART®
Certifications SIL 2/3, IEC 61508, explosion-proof SIL 2, basic industrial ratings 3-A, EHEDG, FDA-compliant
Process Connections Coplanar, in-line, remote seal Compact in-line or coplanar Tri-Clamp®, hygienic seals
Material Options 316L SST, Alloy C-276, Tantalum 316 SST 316L SST, electropolished
Best For Critical flow, level, and pressure in harsh environments General-purpose DP measurement Clean-in-place (CIP) and sterile processes

FAQ for the Rosemount 3051S Differential Pressure Transmitter, crafted to support technical clarity, customer confidence, and professional presentation

Product Basics

  1. What is the Rosemount 3051S used for? It’s designed for high-accuracy differential, gauge, and absolute pressure measurement in critical industrial applications like flow, level, and pressure monitoring.
  2. What makes the 3051S different from other transmitters? It features the SuperModule™ platform, offering ±0.025% accuracy, 15-year stability, and advanced diagnostics, making it Emerson’s most scalable and reliable pressure solution.
  3. What industries typically use the 3051S? Oil & gas, chemical processing, power generation, and other demanding environments where performance and safety are paramount.

Performance & Configuration

  1. What is the accuracy and stability of the 3051S? Accuracy up to ±0.025% of reading and long-term stability of 15 years.
  2. Can I configure the 3051S in the field? Yes. It supports local configuration via a handheld communicator, graphical display, or optional Bluetooth® interface.
  3. Does it support zero and span trims? Absolutely—both zero and span trims are supported for precise calibration.

Connectivity & Integration

  1. Which communication protocols are available? 4–20 mA HART®, WirelessHART®, and FOUNDATION™ Fieldbus.
  2. Is the 3051S compatible with remote seals and manifolds? Yes. It supports coplanar, in-line, and remote seal configurations for flexible installation.

Safety & Compliance

  1. Is the 3051S SIL certified? Yes. It’s SIL 2/3 certified per IEC 61508, suitable for safety instrumented systems.
  2. What materials are available for wetted parts? Options include 316L SST, Alloy C-276, Tantalum, and others for corrosive environments.
  3. Are spare parts and repair kits available? Yes. Emerson provides certified components to maintain safety and performance.
