DIN Rail Or Pipe Mount 3051SAL Level Transmitter Hydrostatic Level Measurement

DIN Rail Or Pipe Mount  3051SAL Level Transmitter, Hydrostatic Level Measurement

Product Description:

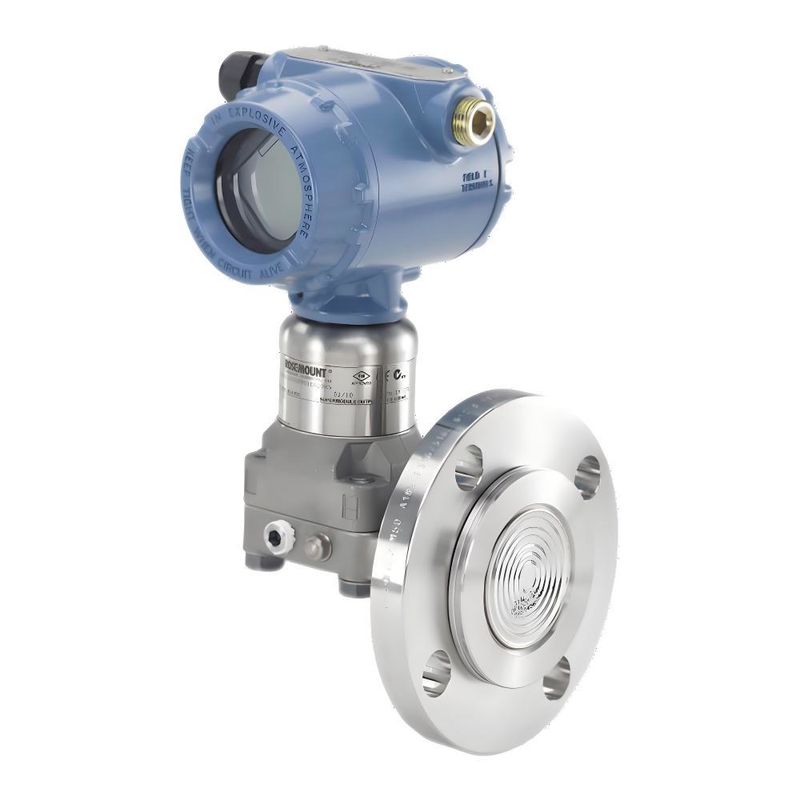

The Rosemount™ 3051SAL Level Transmitter is a high-performance solution designed for hydrostatic level measurement in both pressurized and vented tanks. It’s especially well-suited for demanding applications in industries like oil & gas, chemical processing, and water treatment.

Specifications:

3051SAL vs. 3051L – Hydrostatic Level Transmitter Comparison

The 3051SAL is ideal when you need maximum performance, diagnostics, and flexibility, while the 3051L is a cost-effective, reliable choice for standard-level applications.

Here are the key features of the Rosemount™ 3051SAL Level Transmitter, designed for high-accuracy hydrostatic pressure and level measurement in demanding industrial environments:

Core Capabilities

1. Ultra-High Accuracy: Up to ±0.025% of span with ultra-performance
2. Long-Term Stability: 15-year stability backed by a limited warranty
3. Advanced Diagnostics: Includes Plugged Impulse Line Detection, Loop Integrity, and Process Intelligence for proactive maintenance
4. Flexible Mounting: Supports direct, remote, balanced, and Tuned-System™ assemblies to suit various tank and vessel configurations
5. Output Protocols: 4–20 mA HART®, FOUNDATION Fieldbus, and WirelessHART® for seamless integration
6. Wide Process Compatibility: Handles extreme temperatures (up to 770°F / 410°C) and pressures (up to 10,000 psi)
7. Robust Construction: All-welded, repairable seal systems with materials like 316L SST, Alloy C-276, and Tantalum
8. Certifications: SIL 2/3, NACE®, 3A, and hazardous location approvals for global compliance

Frequently Asked Questions – Rosemount 3051SAL Level Transmitter

Frequently Asked Questions – Rosemount 3051SAL

1. What is the Rosemount 3051SAL Level Transmitter used for?

It’s designed for hydrostatic level measurement in both pressurized and vented tanks. Ideal for applications in oil & gas, chemical, and water industries.

2. How does it measure level?

It calculates the level based on differential pressure (DP)—the pressure exerted by the liquid column above the sensor.

3. What mounting options are available?

1. Direct mount to vessel or pipe
2. Remote seal systems for harsh or viscous media
3. Tuned-System™ assemblies for improved accuracy and response
4. WirelessHART® for remote or hard-to-wire locations

4. What certifications does it carry?

1. SIL 2/3 for safety-critical applications
2. NACE®, 3A, and hazardous location approvals
3. Compliant with IEC 61508

5. What materials are available for wetted parts?

Options include 316L SST, Alloy C-276, Tantalum, and gold-plated variants for aggressive media compatibility.

6. Can it be used in high-temperature environments?

Yes. Depending on fill fluid and configuration, it operates from -157°C to 410°C.

7. What is the benefit of the Tuned-System™?

It reduces temperature effects by 10–20% and improves response time by up to 80% compared to traditional remote seal systems.

8. Is there a wireless version?

Yes. The WirelessHART® model offers:

1. Up to 10-year SmartPower™ life
2. Long-range communication (up to 1 km)
3. Ideal for remote or hazardous areas

9. How is it powered?

1. Wired versions: 4–20 mA loop-powered
2. Wireless version: SmartPower™ module

10. What process connections are supported?

Flanged, threaded, and hygienic seals are available for flexible integration.
