DIN Rail Or Pipe Mount 3051SAL Level Transmitter Hydrostatic Pressure Transmitter

DIN Rail Or Pipe Mount  3051SAL Level Transmitter, Hydrostatic Pressure Transmitter

Product Description:

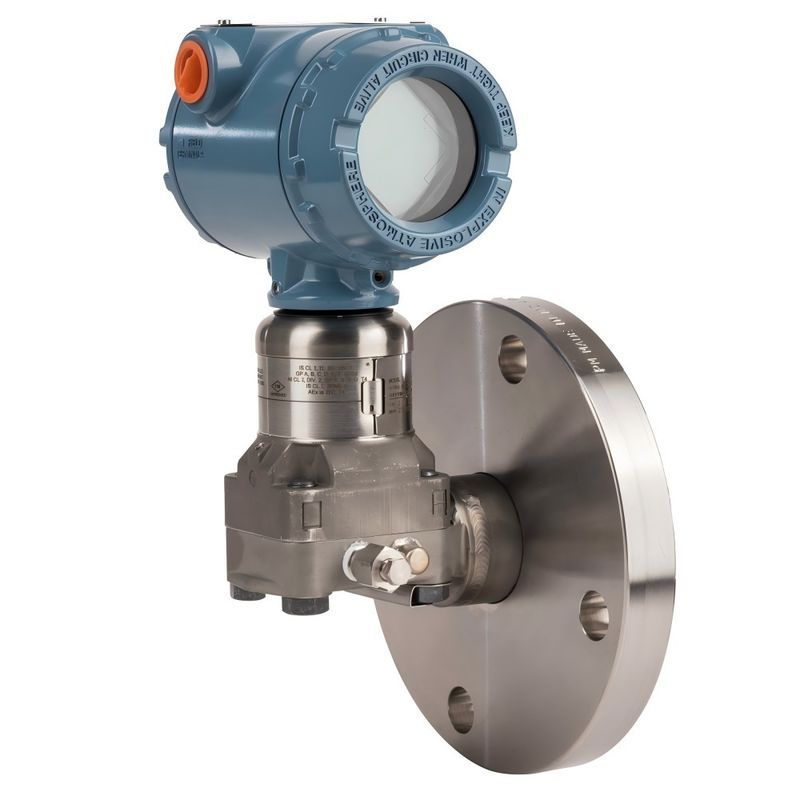

The Rosemount™ 3051SAL Level Transmitter is a high-accuracy hydrostatic pressure transmitter designed for liquid level measurement in both pressurized and vented tanks. Built on the advanced 3051S platform, it offers exceptional stability, safety certification (SIL 2/3), and flexible mounting options including direct, remote, balanced, and Tuned-System™ assemblies. With output protocols like 4–20 mA HART®, WirelessHART®, and FOUNDATION Fieldbus, it delivers reliable performance in harsh environments such as oil & gas, chemical, and water treatment industries. Its robust diagnostics and compatibility with diaphragm seal systems make it ideal for critical-level monitoring applications.

Specifications:

3051SAL vs. 3051L – Hydrostatic Level Transmitter Comparison

The 3051SAL is ideal when you need maximum performance, diagnostics, and flexibility, while the 3051L is a cost-effective, reliable choice for standard-level applications.

Here are the key features of the Rosemount™ 3051SAL Level Transmitter, designed for high-accuracy hydrostatic pressure and level measurement in demanding industrial environments:

Core Capabilities

1. Ultra-High Accuracy: Up to ±0.025% of span with ultra-performance
2. Long-Term Stability: 15-year stability backed by a limited warranty
3. Advanced Diagnostics: Includes Plugged Impulse Line Detection, Loop Integrity, and Process Intelligence for proactive maintenance
4. Flexible Mounting: Supports direct, remote, balanced, and Tuned-System™ assemblies to suit various tank and vessel configurations
5. Output Protocols: 4–20 mA HART®, FOUNDATION Fieldbus, and WirelessHART® for seamless integration
6. Wide Process Compatibility: Handles extreme temperatures (up to 770°F / 410°C) and pressures (up to 10,000 psi)
7. Robust Construction: All-welded, repairable seal systems with materials like 316L SST, Alloy C-276, and Tantalum
8. Certifications: SIL 2/3, NACE®, 3A, and hazardous location approvals for global compliance

Frequently Asked Questions – Rosemount 3051SAL Level Transmitter

1. What is the Rosemount 3051SAL used for?

It’s designed for hydrostatic level measurement in pressurized or vented tanks, converting liquid column pressure into an electrical signal for accurate level monitoring.

2. What makes the 3051SAL different from the 3051L?

The 3051SAL is built on the 3051S SuperModule™ platform, offering higher accuracy (±0.025%), 15-year stability, and advanced diagnostics, making it ideal for critical applications.

3. What output protocols are supported?

It supports 4–20 mA HART®, FOUNDATION Fieldbus, and WirelessHART®, ensuring compatibility with a wide range of control systems.

4. Can it be used in hazardous environments?

Yes, it’s certified for SIL 2/3, NACE®, 3A, and hazardous locations, making it suitable for oil & gas, chemical, and other demanding industries.

5. What mounting options are available?

The 3051SAL supports direct, remote, balanced, and Tuned-System™ assemblies, offering flexibility for various tank and vessel configurations.

6. What diagnostics are included?

It features Plugged Impulse Line Detection, Loop Integrity, and Process Intelligence to support predictive maintenance and reduce downtime.

7. What materials are available for wetted parts?

Options include 316L SST, Alloy C-276, Tantalum, and others, depending on process compatibility.

8. Is it suitable for tall or remote tanks?

Yes, especially when configured with Electronic Remote Sensor (ERS™) systems, which eliminate long impulse lines and improve response time.
