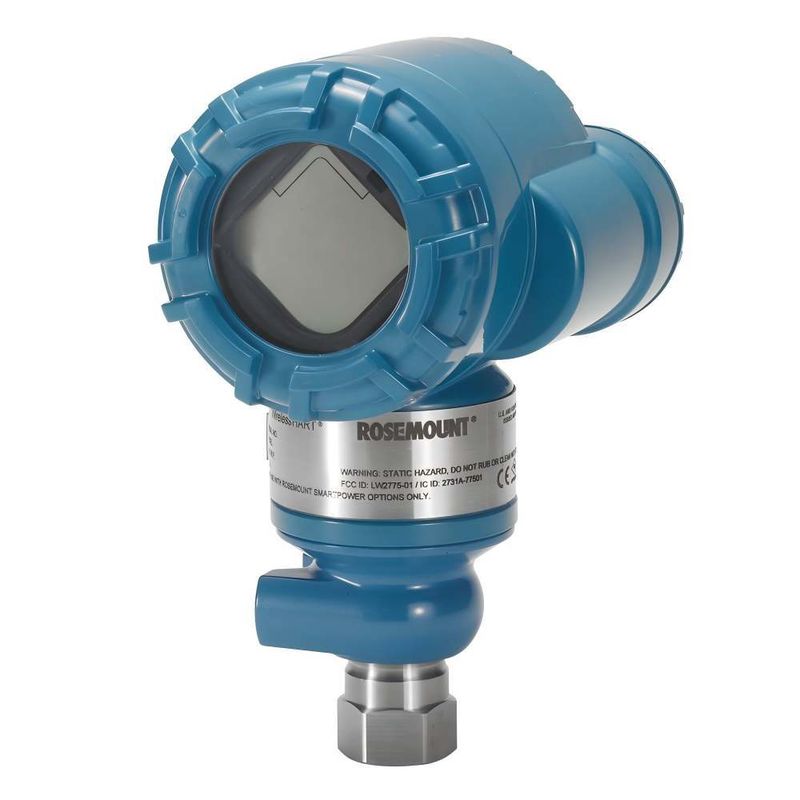

In-Line 3051T Diaphragm Seal Pressure Transmitter
Product introduction:
The Rosemount™ 3051T Diaphragm Seal Pressure Transmitter is a high-accuracy device designed for reliable gauge and absolute pressure measurements in challenging environments. When paired with a diaphragm seal system, it safely isolates the sensor from corrosive, high-temperature, or viscous process media, maintaining excellent performance and long-term stability. It offers multiple output protocols, a wide pressure range of up to 10,000 psi, and is ideal for industries like chemical, oil & gas, and food processing where sensor protection and precise measurement are critical.
Specification:
| Feature / Model |
3051T (In-Line) |
3051C (Coplanar) |
3051S (SuperModule) |
| Measurement Type |
Gauge / Absolute |
Differential / Gauge / Absolute |
Differential / Gauge / Absolute |
| Design |
In-line mount with diaphragm seal compatibility |
The coplanar platform for flexible integration |
Advanced SuperModule™ platform |
| Accuracy |
±0.065% of span (standard) |
±0.075% of URL |
±0.025% of span |
| Stability |
5-year: ±0.125% of URL |
10-year: ±0.2% of URL |
10-year: ±0.1% of URL |
| Output Protocols |
HART®, Fieldbus, PROFIBUS®, Low Power |
HART®, Fieldbus, PROFIBUS®, WirelessHART® |
HART®, Fieldbus, PROFIBUS®, WirelessHART® |
| Best For |
Simple gauge/absolute pressure in harsh conditions |
Versatile applications needing differential or multi-variable |
High-accuracy, safety-critical, or multi-variable setups |
| Installation Complexity |
Simple, direct mount |
Moderate (requires manifold or seal integration) |
Higher (advanced configuration and diagnostics) |
| Cost Efficiency |
Most cost-effective |
Mid-range |
Premium |
| Diagnostics & Features |
Basic diagnostics |
Advanced diagnostics (Loop Integrity, Plugged Line) |
Full diagnostics, SIL3, remote display, Bluetooth® |
Quick Take:
- Choose 3051T for straightforward pressure monitoring with diaphragm seal protection.
- Go with 3051C when you need flexibility across pressure types and integration with manifolds.
- Opt for 3051S when precision, diagnostics, and long-term stability are mission-critical.
Frequently Asked Questions – Rosemount 3051T
1. What types of pressure does the 3051T measure?
It measures gauge and absolute pressure, making it ideal for a wide range of industrial applications.
2. Why use a diaphragm seal with the 3051T?
A diaphragm seal protects the transmitter from corrosive, high-temperature, or viscous media, ensuring long-term accuracy and reliability.
3. What is the accuracy of the 3051T?
Standard accuracy is ±0.065% of span, with a high-accuracy option of ±0.04% for critical applications.
4. What output protocols are supported?
It supports 4–20 mA HART®, FOUNDATION™ Fieldbus, PROFIBUS®, and low-power voltage outputs.
5. Can the 3051T be used in hazardous environments?
Yes, it has SIL 2/3 certifications and approvals for use in hazardous locations.
6. What diaphragm seal systems are compatible?
It integrates with Rosemount 1199 and 1299 diaphragm seal systems for remote or sanitary installations.
7. What is the maximum pressure range?
It can measure up to 10,000 psi, depending on the configuration.
8. How long is the stability period?
It offers 5-year stability of ±0.125% of URL, reducing recalibration needs.
9. Is wireless communication available?
Wireless is not standard on the 3051T, but other models like the 3051C and 3051S offer WirelessHART® options.
10. What industries typically use the 3051T?
Common in chemical, oil & gas, food & beverage, and pharmaceutical sectors—especially where media isolation is critical.
Typical models of the 3051TA transmitter:
| Model Code |
Pressure Range |
Suffix |
Notes |
| 3051TA1A2B21AB4M5 |
Range 1 |
— |
Base model |
| 3051TA2A2B21AB4M5 |
Range 2 |
— |
|
| 3051TA3A2B21AB4M5 |
Range 3 |
— |
|
| 3051TA4A2B21AB4M5 |
Range 4 |
— |
|
| 3051TA5A2B21AB4M5 |
Range 5 |
— |
|
| 3051TA1A2B21AB4M5K5 |
Range 1 |
K5 |
Typically indicates a mounting bracket |
| 3051TA2A2B21AB4M5K5 |
Range 2 |
K5 |
|
| 3051TA3A2B21AB4M5K5 |
Range 3 |
K5 |
|
| 3051TA4A2B21AB4M5K5 |
Range 4 |
K5 |
|
| 3051TA5A2B21AB4M5K5 |
Range 5 |
K5 |
|
| 3051TA1A2B21AB4M5E5 |
Range 1 |
E5 |
Likely LCD or enhanced electronics |
| 3051TA2A2B21AB4M5E5 |
Range 2 |
E5 |
|
| 3051TA3A2B21AB4M5E5 |
Range 3 |
E5 |
|
| 3051TA4A2B21AB4M5E5 |
Range 4 |
E5 |
|
| 3051TA5A2B21AB4M5E5 |
Range 5 |
E5 |
|
| 3051TA1A2B21AB4M5I5 |
Range 1 |
I5 |
Possibly transient protection |
| 3051TA2A2B21AB4M5I5 |
Range 2 |
I5 |
|
| 3051TA3A2B21AB4M5I5 |
Range 3 |
I5 |
|
| 3051TA4A2B21AB4M5I5 |
Range 4 |
I5 |
|
| 3051TA5A2B21AB4M5I5 |
Range 5 |
I5 |
|
- Range 1–5: Correspond to increasing pressure ranges (e.g., 0–30 psi up to 0–2000 psi absolute)
- K5: Mounting bracket option
- E5: LCD or enhanced electronics
- I5: Electrical transient protection or grounding option
