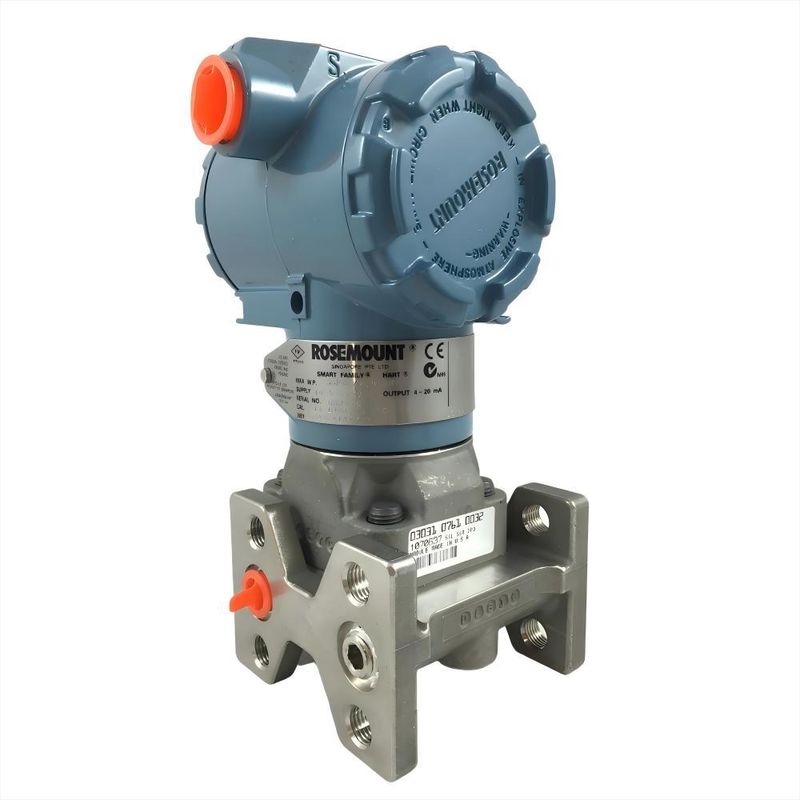

New Original 3051CG Air Pressure Transmitter

New Original 3051CG Air Pressure Transmitter

New Original 3051CG Pressure Transmitter

3051CG Air Pressure Transmitter

3051CG Pressure Transmitter

Place of Origin:

Singapore

Certification:

ISO9001

Model Number:

3051CG

Contact Us
Request A Quote
Product Details
Process Connection:
1/4" NPT
Measurement Range:
0-4000 Psi
Operating Temperature:
-40 To 85°C
Output Signal:
4-20 MA
Housing Material:
Aluminum
Accuracy:
+/- 0.075% Of Span
Mounting Type:
DIN Rail Or Pipe Mount
Display:
LCD
Wetted Materials:
316L Stainless Steel
Protection Rating:
IP67
Power Supply:
10.5-55 VDC
Communication Protocol:
HART
Highlight:

New Original 3051CG Pressure Transmitter

,

3051CG Air Pressure Transmitter

,

3051CG Pressure Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
negotiable
Packaging Details
carton
Delivery Time
5-8 work days
Payment Terms
T/T
Product Description
New Original 3051CG Air Pressure Transmitter

New Original 3051CG Air Pressure Transmitter 0


Product Description:

The Rosemount 3051CG is a high-performance gauge pressure transmitter designed for precise air and gas pressure measurement in industrial environments. Built on Emerson’s Coplanar™ platform, it offers exceptional flexibility, long-term stability, and advanced diagnostics. With output options like 4–20 mA HART®, Fieldbus, and WirelessHART®, it supports seamless integration into both legacy and modern systems.


Ideal for applications in manufacturing, energy, and chemical processing, the 3051CG delivers ±0.04% reference accuracy and up to 10 years of stability, making it a trusted choice for reliable, maintenance-friendly pressure monitoring.


Specifications:

Feature / Model 3051CG (Gauge) 3051CD (Differential) 3051HT (Hygienic)
Measurement Type Gauge pressure (vs. atmosphere) Differential pressure (between two points) Gauge or absolute pressure (sanitary design)
Platform Coplanar™ Coplanar™ In-line hygienic
Typical Applications Air/gas pressure, general process control Flow, level, and filter monitoring Food, beverage, and pharmaceutical
Accuracy ±0.04% of span ±0.04% of span ±0.1% of span
Stability ±0.2% of URL over 10 years ±0.2% of URL over 10 years ±0.25% of URL over 5 years
Output Options 4–20 mA HART®, Fieldbus, WirelessHART® 4–20 mA HART®, Fieldbus, WirelessHART® 4–20 mA HART®, FOUNDATION™ Fieldbus
Certifications SIL 2/3, explosion-proof, Bluetooth® option SIL 2/3, explosion-proof, Bluetooth® option 3-A, EHEDG, FDA-compliant materials
Process Connections Standard threaded or flanged Coplanar manifold compatible Tri-Clamp®, hygienic fittings
Pressure Range Up to 6000 psi (413 bar) Up to 2000 psi (138 bar) differential Up to 300 psi (20.7 bar)

Selection Tips

  1. Choose 3051CG for general-purpose air/gas pressure monitoring.
  2. Use 3051CD when you need to measure pressure differences (e.g., across filters or orifice plates).
  3. Opt for 3051HT in sanitary or clean-in-place (CIP) environments.

New Original 3051CG Air Pressure Transmitter 1


Applications:

New Original 3051CG Air Pressure Transmitter 2

Packing:

New Original 3051CG Air Pressure Transmitter 3

Frequently Asked Questions – Rosemount 3051CG

1. What type of pressure does the 3051CG measure?

The 3051CG measures gauge pressure, which is the pressure relative to atmospheric pressure.

2. What is the accuracy of the 3051CG?

It offers up to ±0.04% of span reference accuracy, making it ideal for precision-critical applications.

3. What output protocols are supported?

  1. 4–20 mA HART®
  2. FOUNDATION™ Fieldbus
  3. Profibus®
  4. WirelessHART®
  5. Low-power voltage output (select models)

4. What is the maximum pressure range?

Depending on the range code, it can measure up to 6000 psi (413 bar).

5. What’s the difference between the 3051CG and 3051CA?

  • 3051CG: Measures gauge pressure using a capacitance sensor.

  • 3051CA: Measures absolute pressure using a piezoresistive silicon sensor.

6. How much does the 3051CG weigh?

Approximately 5.7 lbs (2.6 kg) without mounting brackets.

7. Can it be used in hazardous environments?

Yes, it has multiple certifications, including SIL 2/3, explosion-proof, and intrinsically safe approvals.

8. What mounting options are available?

It supports Coplanar™ flange, traditional flange, and 2-inch pipe mounting with optional brackets.

9. How often does it need recalibration?

Thanks to its ±0.2% URL stability over 10 years, recalibration frequency can be significantly reduced.

10. Is Bluetooth® configuration available?

Yes, select models offer Bluetooth® connectivity for wireless setup and diagnostics.



Models of 3051CG Transmitters:


Model Code Range Code Process Conn. Options
3051CG1A02A1AB1H2L4M5 1 B1 L4M5
3051CG2A02A1AB1H2L4M5 2 B1 L4M5
3051CG3A02A1AB1H2L4M5 3 B1 L4M5
3051CG4A02A1AB1H2L4M5 4 B1 L4M5
3051CG5A02A1AB1H2L4M5 5 B1 L4M5
3051CG1A02A1AB3H2L4M5 1 B3 L4M5
3051CG2A02A1AB3H2L4M5 2 B3 L4M5
3051CG3A02A1AB3H2L4M5 3 B3 L4M5
3051CG4A02A1AB3H2L4M5 4 B3 L4M5
3051CG5A02A1AB3H2L4M5 5 B3 L4M5
3051CG1A02A1AB1H2L4M5K5 1 B1 L4M5K5
3051CG2A02A1AB1H2L4M5K5 2 B1 L4M5K5
3051CG3A02A1AB1H2L4M5K5 3 B1 L4M5K5
3051CG4A02A1AB1H2L4M5K5 4 B1 L4M5K5
3051CG5A02A1AB1H2L4M5K5 5 B1 L4M5K5
3051CG1A02A1AB1H2L4M5E5 1 B1 L4M5E5
3051CG2A02A1AB1H2L4M5E5 2 B1 L4M5E5
3051CG3A02A1AB1H2L4M5E5 3 B1 L4M5E5
3051CG4A02A1AB1H2L4M5E5 4 B1 L4M5E5
3051CG5A02A1AB1H2L4M5E5 5 B1 L4M5E5
3051CG1A02A1AB1H2L4M5I5 1 B1 L4M5I5
3051CG2A02A1AB1H2L4M5I5 2 B1 L4M5I5
3051CG3A02A1AB1H2L4M5I5 3 B1 L4M5I5
3051CG4A02A1AB1H2L4M5I5 4 B1 L4M5I5
3051CG5A02A1AB1H2L4M5I5 5 B1 L4M5I5
3051CG1A02A1AB3H2L4M5K5 1 B3 L4M5K5
3051CG2A02A1AB3H2L4M5K5 2 B3 L4M5K5
3051CG3A02A1AB3H2L4M5K5 3 B3 L4M5K5
3051CG4A02A1AB3H2L4M5K5 4 B3 L4M5K5
3051CG5A02A1AB3H2L4M5K5 5 B3 L4M5K5
3051CG1A02A1AB3H2L4M5E5 1 B3 L4M5E5
3051CG2A02A1AB3H2L4M5E5 2 B3 L4M5E5
3051CG3A02A1AB3H2L4M5E5 3 B3 L4M5E5
3051CG4A02A1AB3H2L4M5E5 4 B3 L4M5E5
3051CG5A02A1AB3H2L4M5E5 5 B3 L4M5E5
3051CG1A02A1AB3H2L4M5I5 1 B3 L4M5I5
3051CG2A02A1AB3H2L4M5I5 2 B3 L4M5I5
3051CG3A02A1AB3H2L4M5I5 3 B3 L4M5I5
3051CG4A02A1AB3H2L4M5I5 4 B3 L4M5I5
3051CG5A02A1AB3H2L4M5I5 5 B3 L4M5I5
3051CG1A22A1AB4M5 1 B4 M5
3051CG2A22A1AB4M5 2 B4 M5
3051CG3A22A1AB4M5 3 B4 M5
3051CG4A22A1AB4M5 4 B4 M5
3051CG5A22A1AB4M5 5 B4 M5
3051CG1A22A1AB4M5DF 1 B4 M5DF
3051CG2A22A1AB4M5DF 2 B4 M5DF
3051CG3A22A1AB4M5DF 3 B4 M5DF
3051CG4A22A1AB4M5DF 4 B4 M5DF
3051CG5A22A1AB4M5DF 5 B4 M5DF
3051CG1A22A1AB4M5K5 1 B4 M5K5
3051CG2A22A1AB4M5K5 2 B4 M5K5
3051CG3A22A1AB4M5K5 3 B4 M5K5
3051CG4A22A1AB4M5K5 4 B4 M5K5
3051CG5A22A1AB4M5K5 5 B4 M5K5
3051CG1A22A1AB4M5E5 1 B4 M5E5
